Description

| Why You Need a ZYD-M-100 Mobile Type Transformer Oil Purifier?

The transformer requires clean and dried oil. During its usage, the insulating oil absorbs moisture and gets polluted by sopping fibers, dirty particles, aging products soot, etc.
Even unused oil is not clean enough as it may have absorbed moisture from the air or may have got polluted in the barrel it was stored in.
The efficiency of the oil as an insulating material is highly reduced as the moisture level increases. Hence transformer oil filtering is an important process that eliminates solid particles, dissolved gases and dissolved water.

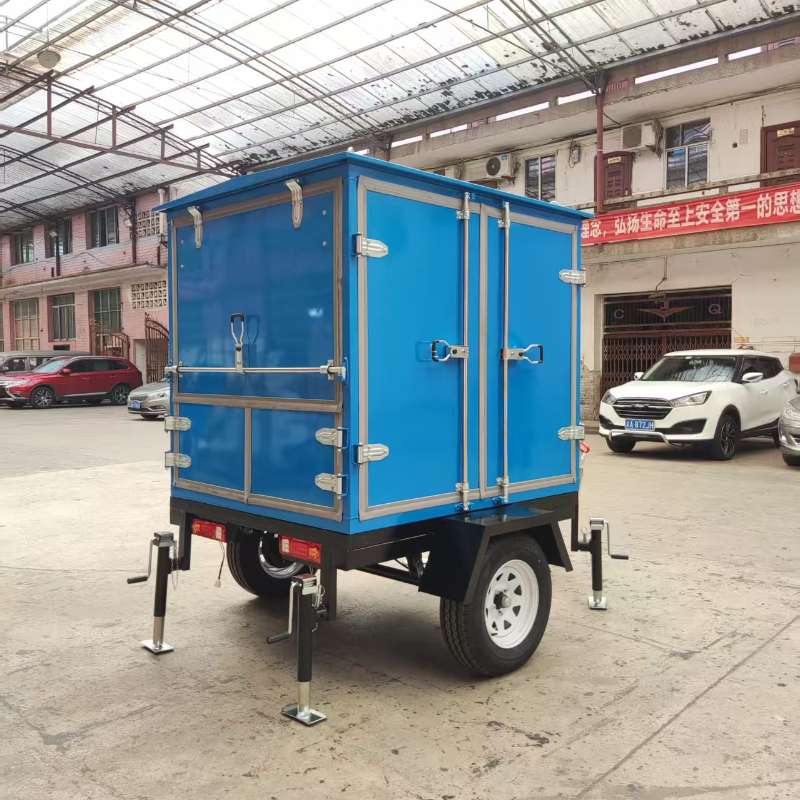

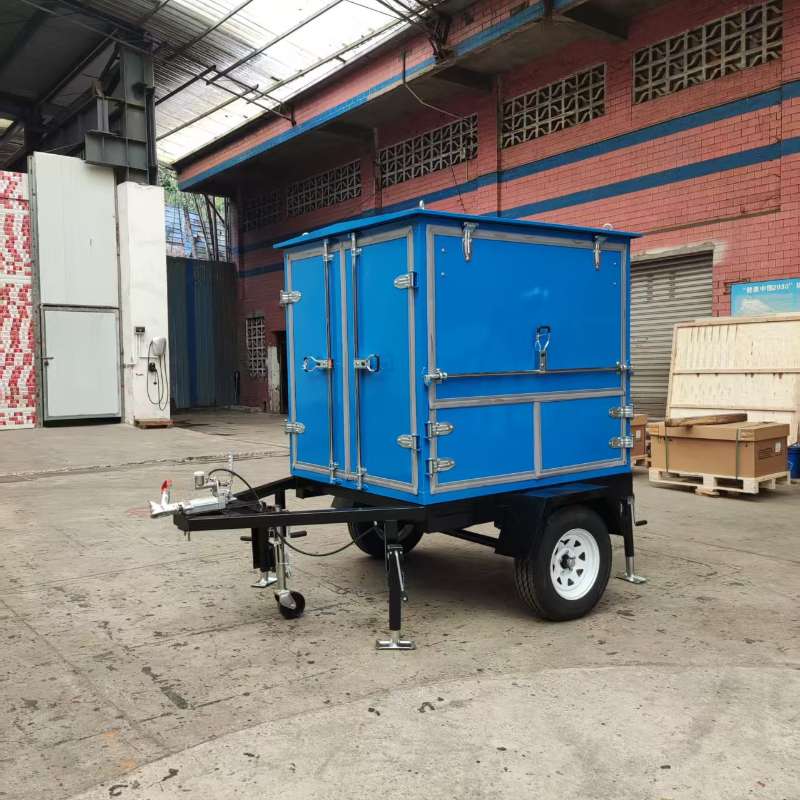

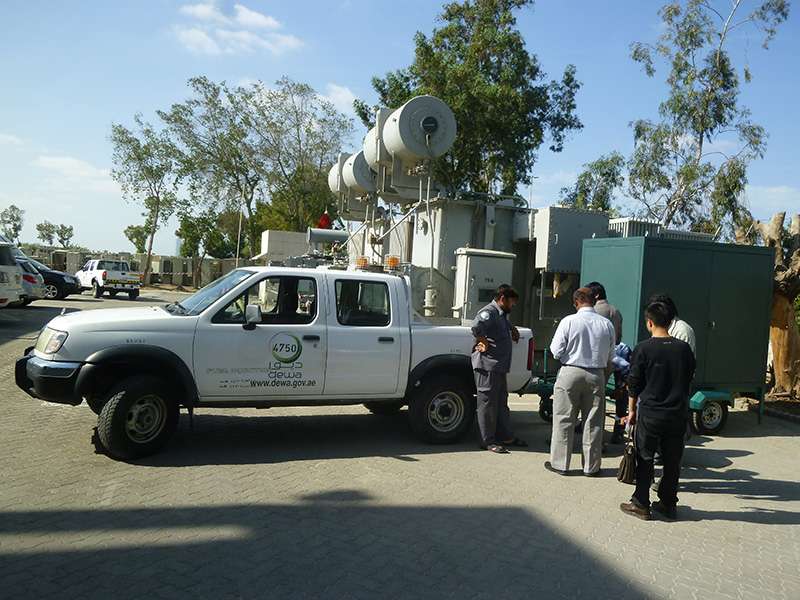

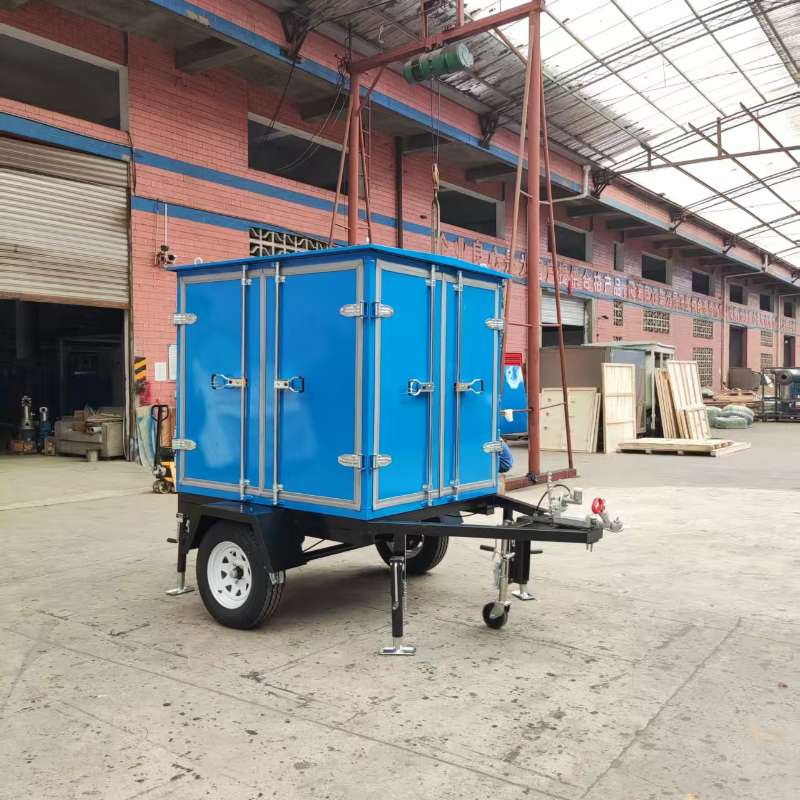

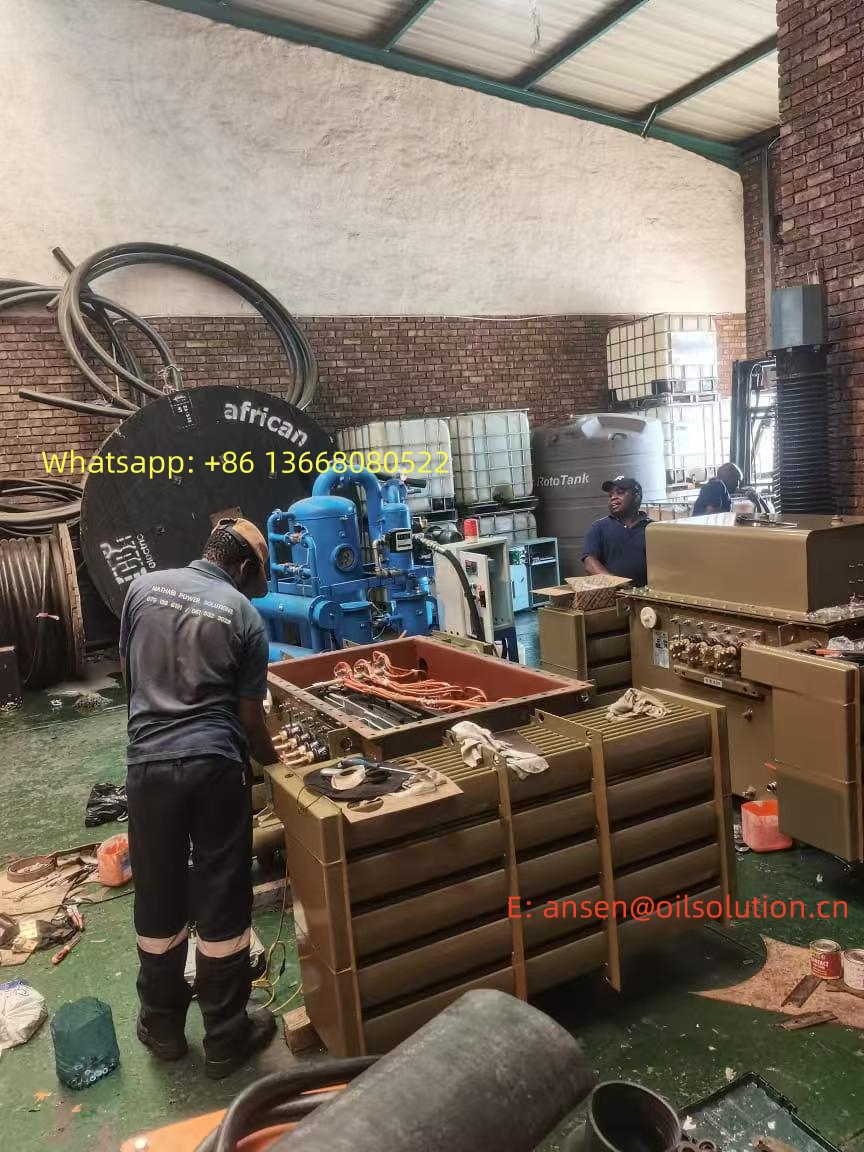

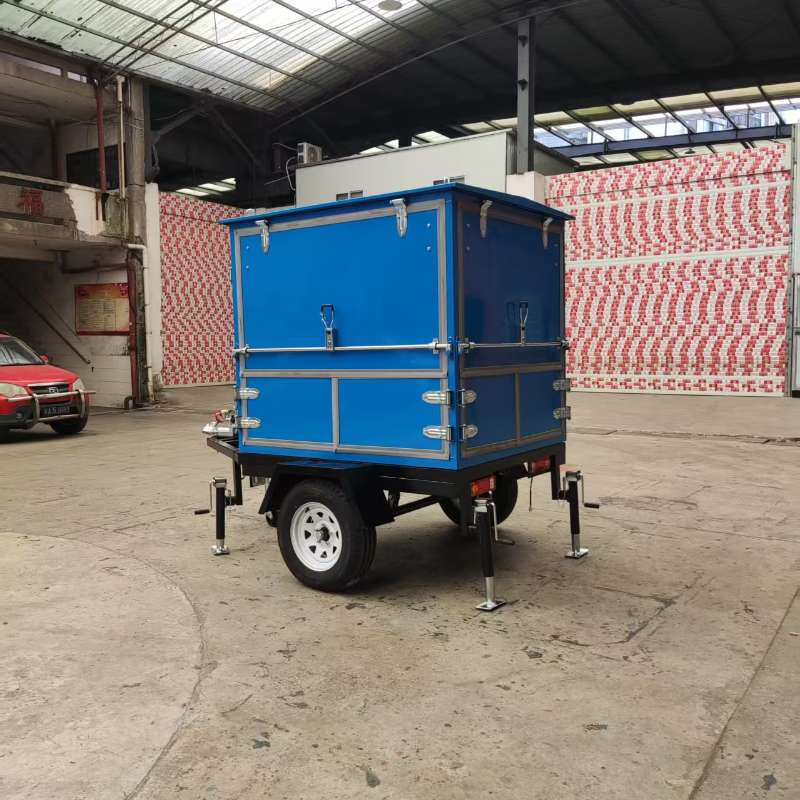

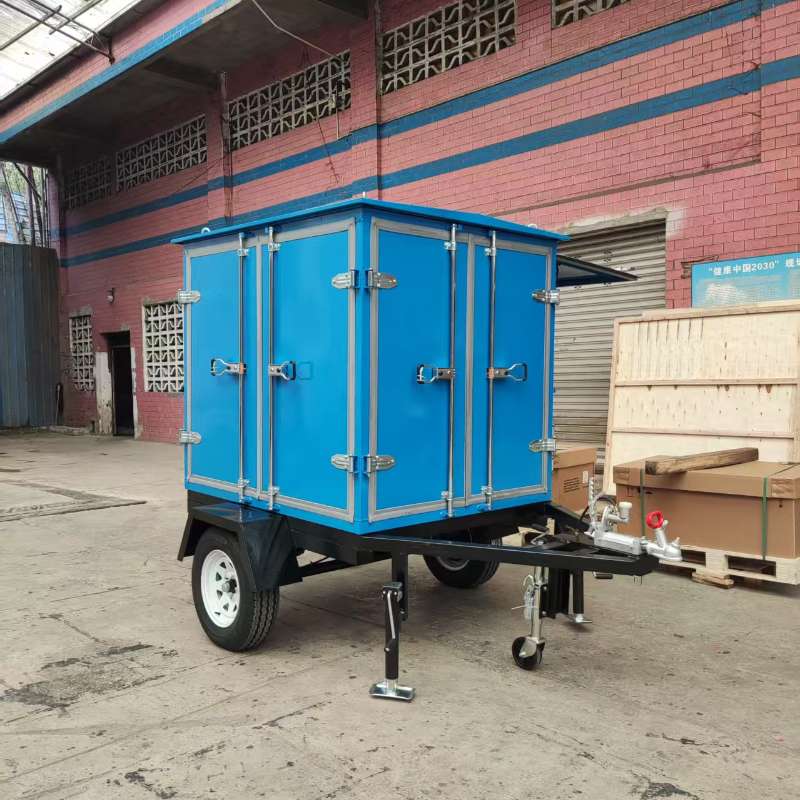

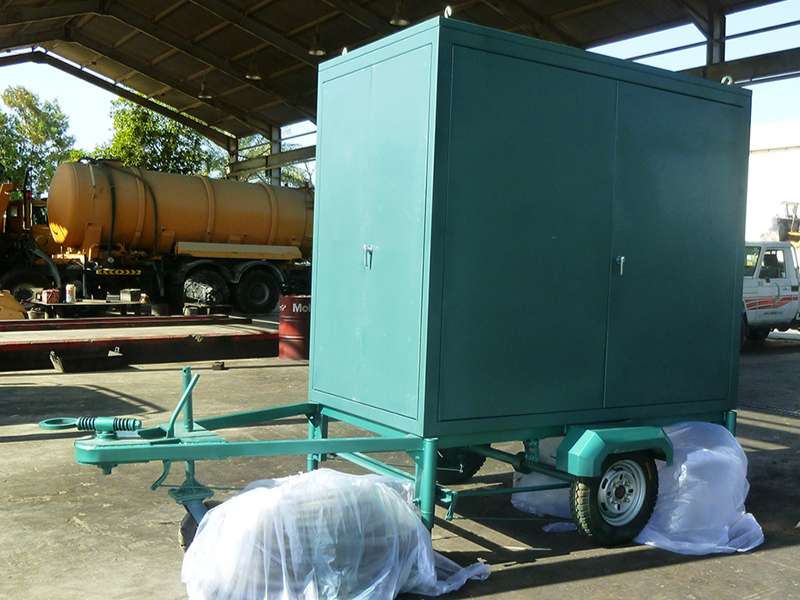

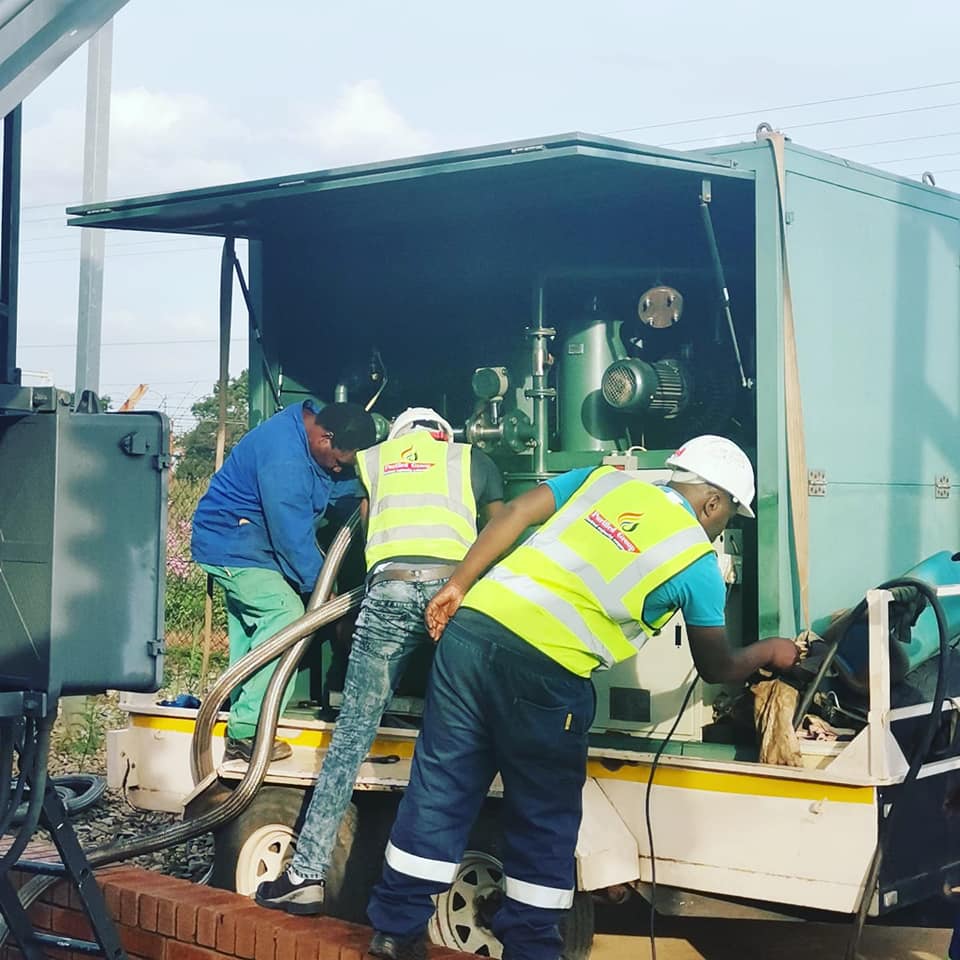

Machine has waterproof and trailer, suitable for moving to site, and do transformer oil filtration services even in a rainy day.

-Transformer Oil
-Mutual Inductor Oil
-Switch Oil
-Other Insulation Oil

| The Differences Between ZY&ZYD

Compared with the single-stage vacuum oil purifier(ZY), the two-stage vacuum oil purifier(ZYD) adds a Roots pump for strengthing the booster system, a two-stage vacuum system, an infrared progressive scanning automatic control system and a three-dimensional rapid evaporation system.
ZYD’s dehydration, degassing, acid value removal, free carbon removal, etc., the ultimate withstand voltage value of transformer oil after treatment is higher. Besides, it be used as an oil purification machine, but it also can be used as an independent vacuum source for vacuum drying and oil filling of transformer equipment.
ZYD can effectively filter free water and dissolved water in the oil, as well as free gas and dissolved gas. The two-stage high-efficiency vacuum system adopts vacuum separation technology, which can effectively and quickly remove water in oil. parts, acetylene, acid value, mechanical impurities, free carbon, colloid, etc.; improving the pressure resistance value of oil.

| Applications

G ZYD Series Double Stage High Vacuum Transformer Oil Purifier is specially designed for treating transformer oil and other kinds of insulating oil in oil-filled electrical equipment. Through oil dehydration, degasification, and filtration processes, the dissolved gases and moisture, solid particulate, and contamination can be completely removed from oil. After treatment, the insulating oil breakdown voltage recovered, the oil’s quality improved, oil’s properties were restored, extending the transformer oil service life, and also extending the transformer and electric equipment service life and reliability.
Meanwhile, except for the basic function of transformer oil purification, our ZYD Series Double Stage High Vacuum Transformer Oil Purifier can be also used as vacuum oil drying/ vacuum oil oiling/ vacuum pumping equipment for transformers.

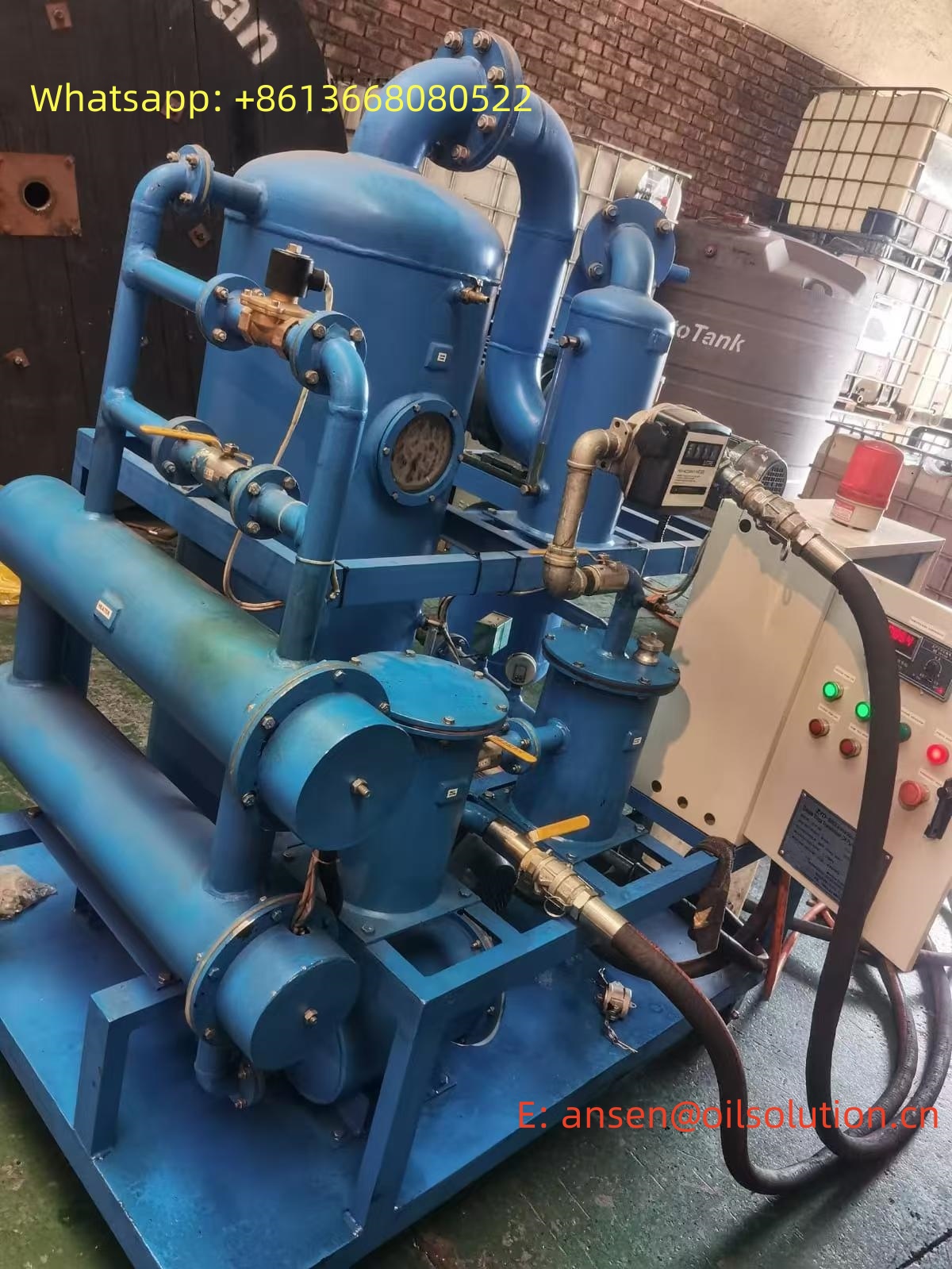

| Features

ZYD equips not only a vacuum pump, but also a booster pump, the combination helps to fast vacuum speed, and reaches a very good ultimate vacuum. High vacuum: Ultimate vacuum ≤ 5Pa Working vacuum ≤ 35Pa, High absorption speed: absorption speed power ≥ 333L/S.
By using large area Duplex 3D Flash Vaporization Technology, it quickly evaporates liquid water as well as degassing.
UK G tech by which the trace water that is show chain, such as dissolved water, can removed effectively.
Equipping comprehensive machine protection systems, such as power protection, pressure protection, oil liquid level observing system, etc. Make sure the machine works normally.
With a three-stage filtration system, it could remove particles thoroughly. And due to the precision of the filters. Each stage filters certain sizes of particles, effectively prolonging the filter’s lifetime, and protecting the machine.
Fully automatic temperature controlling system and thermal heating system, automatic oil level control system, etc prevent oil from being carbonized, and make sure the machine works safely and smoothly.
Machine applied to vacuum oiling, drying as well and filtration to power equipment. And also can be operated both on-load and off-load.

| Flow Chart

| Structure Drawing

| Specifications

| Oil Parameter After Purification

| Machine’s Main Advantaged Technologies

The free water and water vapor pass through the coalescing separation device (mainly with oleophilic hydrophobic and hydrophilic oleophobic materials), which mainly allows the oil to pass smoothly and the water is automatically separated; for the dissolved water and the emulsified water, the polymer is broken. The emulsification system, the German three-dimensional flashing technology, the atomization generating device, the three-dimensional evaporation device, the thin film vaporization, the Bower’s expansion device for the micro water, the binary dehydration device is truly realized, the moisture in the oil is quickly separated, and Deep dewatering, reaching ≤5PPM
Adopting the most advanced low-temperature plasma, micro-gram technology, circulating distillation and other technologies, the water and gas in the oil are automatically dehydrated and automatically emulsified by the aggregation and separation technology to remove a large amount of water from the oil. This process removes 100% free water and free gas, 80% dissolved water and 65% dissolved gas. After that, the oil containing traces of moisture and gas is fully atomized by three-dimensional flash evaporation technology to increase the thinning of oil, water and gas molecules, and then the gas in the deep and more cut-out oil.
We adopt the double mesh type impurity removal method, firstly removing all the impurities containing impurities with particle size ≥5μm or more in the oil through the filter; then use the molecular adsorption material (HDM) imported from Germany to make the FH filter ≤5μm impurities. By removing the impurities of 1-5 μm in the oil by adsorption, the cleanliness of the oil is guaranteed to reach NSA level 6.
It has pressure overload protection, automatic anti-dry burning, automatic defoaming, and a unique infrared liquid level automatic control device (better than a photoelectric automatic control device), which can automatically adjust the balance of oil in and out to achieve man-machine separation and make the operation more convenient and reliable.
